0.01mm 0.02mm 0.03mm 0.04mm 0.05mm 0.06mm 0.08mm 0.1mm Thick Pure Copper Strip Foil
Product Description

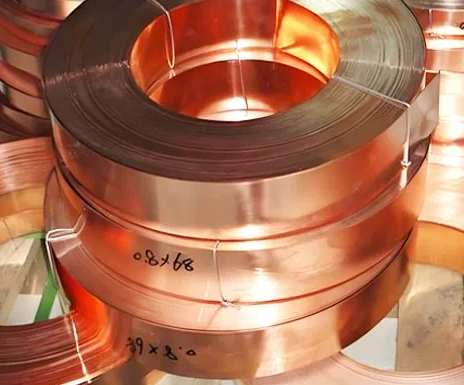

Introducing our Ultra-Thin Pure Copper Strip and Foil series, manufactured by cold-rolling process with thicknesses ranging from 0.01mm to 0.1mm. This product is designed for applications requiring exceptional electrical conductivity, thermal transfer, and corrosion resistance in extremely thin gauges.
Produced from 99.99% pure copper (grades including T1, T2, C11000, C10200 OFC), our copper foil offers excellent ductility, allowing for tight bending, stamping, and deep drawing without cracking. The bright polished surface ensures low contact resistance, making it the top choice for precision electronics, grounding straps, and heat dissipation components.
With a low MOQ of 500kg and seaworthy export packaging, this coil/foil is ready for global OEM and industrial supply chains. Free samples are available for qualified testing.
Technical Specifications
| Product |
Copper Sheet, Plate, Coil, Strip, Foil |
| Steel Grade |
Pure Copper:
T1,T2,T3,C11000,C11100,C11300,C11400,C11500,C1100
TU1,TU2,C10200,C1020
TP1,TP2,C12000,C12200,C14500,C14700,C15000,C1201,C1220
TAg0.1,C11600
Brass:
H96,H90,H85,H80,H70,H68,H68A,H65,H63,H62,H59,H70A,H85A.
C21000,C22000,C23000,C24000,C26000,C26000,C27000,C27200,C27400,C28000
C2100,C2200,C2300,C2400,C2600,C2700,C2720,C2801 |
| Thickness |
0.2mm-50mm |
| Width |
10mm-2500mm, custom. |
| Manufacturing Method |
Cold Rolled, Hot Rolled |
| Surface |
Bright polished |
| MOQ |
500 KG |
| Free Samples |
Available |
| Per Coil Weight |
1-8 tons |
| Package |
Seaworthy packing with wooden pallets and waterproof paper |
| Leading time |
Usually 7-15 days, if in stock 1-3 days. |
| Payment terms |
T/T 30% for deposit. 70% balance before shipment |
| Delivery Terms |
FOB/CIF/CFR/EXW |
Applications
- EMI / RFI Shielding: Flexible gaskets for electronic enclosures and 5G equipment.
- Lithium-Ion Batteries: Negative electrode current collector tabs and connectors.
- Flexible Printed Circuits (FPC): Base material for conductive layers.
- Lightning Protection: Grounding straps and static discharge brushes.
- Heat Dissipation: Thermal interface materials between CPUs, LEDs, and heat sinks.
- Decorative & Craft: Metal inlay, art foil, and architectural cladding.
- Transformers & Inductors: Winding foil for high-frequency transformers.
Working Principle
- Electrical Conductivity (Skin Effect): At high frequencies, electrical current travels on the surface of a conductor (Skin Effect). The bright polished, ultra-thin profile (0.01mm–0.1mm) maximizes surface-area-to-volume ratio, reducing AC resistance and improving efficiency in RF circuits and transformers.
- Thermal Equilibrium: Copper has a high thermal conductivity (~400 W/mK). When placed between a heat source and a sink, the thin foil creates a low-impedance path for phonons (heat energy), quickly spreading and transferring heat away from sensitive components.
- Electromagnetic Field Attenuation (Shielding): When used as a shield, the conductive copper foil reflects incident electromagnetic waves. The thin gauge allows the material to be conformable (bends around cables or enclosures), creating a continuous conductive barrier that absorbs and guides interference currents to ground.
PACKING AND SHIPPING
FAQ (Frequently Asked Questions)
Q1: Can you cut the 0.05mm copper foil into specific widths?
A: Yes. We offer precision slitting services. The standard width range is 10mm to 2500mm. You can order custom widths with no tooling charge for bulk orders.
Q2: What is the difference between C11000 (ETP) and C10200 (OFC) for thin foil?
A: C11000 (Electrolytic Tough Pitch) offers excellent conductivity (101% IACS) and is cost-effective. C10200 (Oxygen-Free) has lower residual oxygen content, making it ideal for high-temperature hydrogen atmospheres (welding/brazing) and critical electronics where embrittlement is a concern.
Q3: Is a free sample available for the 0.01mm thick foil?
A: Yes, free samples are available. Please contact our sales team to arrange shipping. You only need to pay for the international courier cost if outside standard zones.
Q4: What is your MOQ for 0.03mm pure copper strip?
A: The standard MOQ is 500 kg per specification. However, for trial orders or standard stock sizes, we may be able to reduce the MOQ. Please inquire with your target quantity.
Q5: How do you pack the 0.1mm copper coil to prevent damage?
A: We use seaworthy packing with a wooden pallet and waterproof paper. The coils are wrapped with rust-proof VCI paper and plastic film, then secured on wooden spools or pallets to prevent denting or creasing during transit.
Q6: What is the lead time for non-standard sizes (e.g., 0.08mm x 45mm)?
A: If the size is not in stock, the typical production lead time is 10-15 days after deposit confirmation.
Q7: Can this foil be used for battery tab welding?
A: Yes, the 0.1mm to 0.2mm range is commonly used for lithium battery tabs. It supports ultrasonic welding and laser welding processes.
